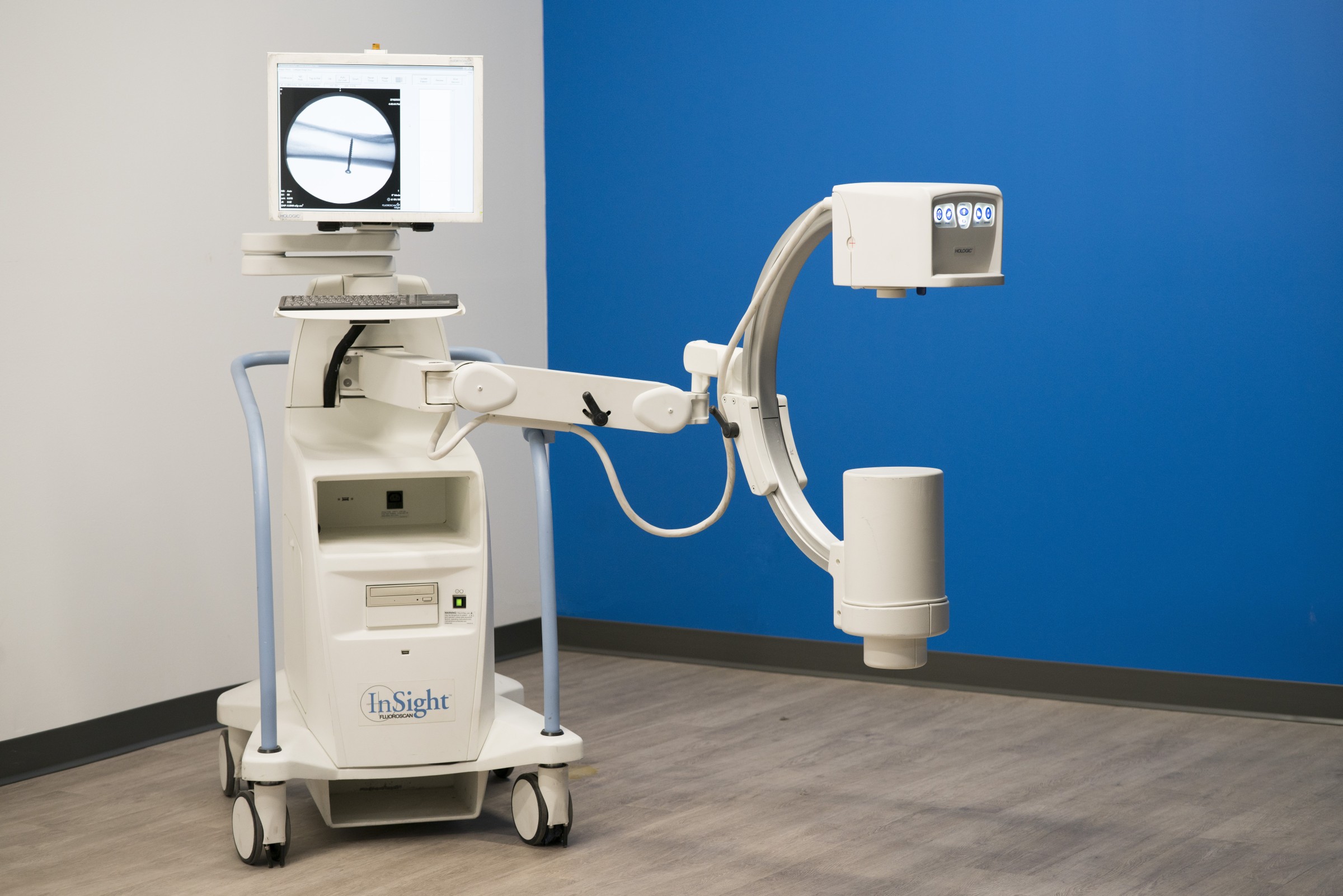

The Hologic Fluoroscan InSight 2 is an intuitive, cost-effective mini C-arm designed specifically for orthopedic and extremity imaging. With high-quality digital images, simplified operation and easy mobility, it is the ideal choice for the operating room, emergency department, doctor's office, surgery center, and sports medicine facility.

The InSight 2 is equipped with a standard 6"/4" image intensifier and delivers ultra-fine, low-dose fluoroscopy and snapshot images. Its compact footprint and lightweight design make it easy to position precisely around the extremity without encroaching on the surgical field.

Specifications

X-ray Generation
kV Range
40–75 kVp
mA Range
0.02–0.10 mA
Imaging
Image Intensifier
6"
II Formats
6", 4"
Camera
High Resolution CCD
User Interface
Monitor
20"
Geometry
Free space within C-arm
14"
Vertical Range
23"
C-arm depth
16"
Rotation
120°
Connectivity
Networking (DICOM Optional)
Wired
Other
USB (Image Export)
Dimensions
C-Arm
57" H x 28" W x 32" L
C-Arm Weight
400 lbs
