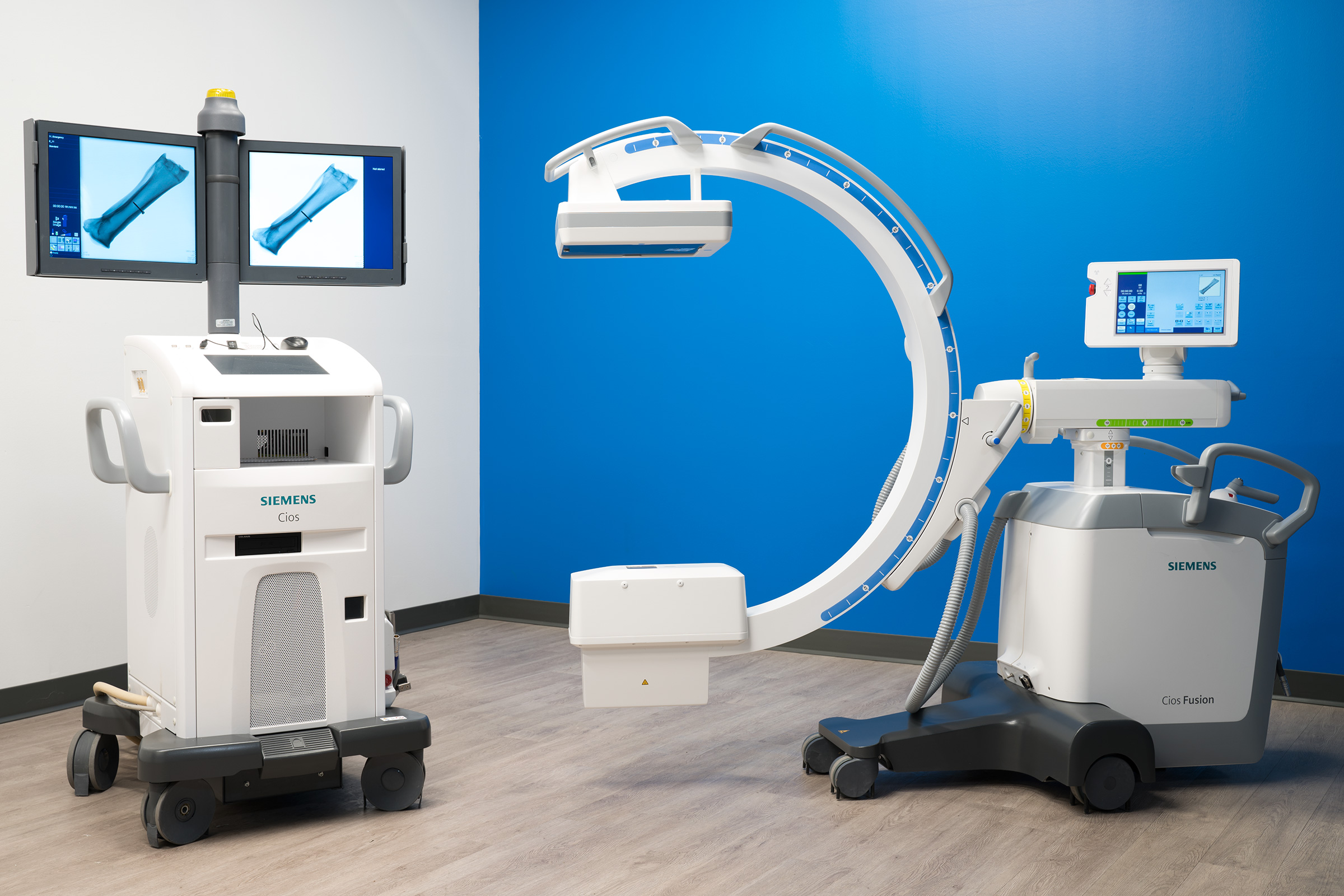

The Siemens CIOS Fusion delivers flat detector image quality in a compact, maneuverable package. Its 2.3kW generator and 30×30cm flat detector produce sharp, low-dose digital images across a wide range of applications — making it a strong fit for orthopedic, spine, and general surgical environments where both image quality and maneuverability matter.
Like the Alpha, the Fusion features dual touchscreen controllers on the workstation and C-arm, keeping the surgeon in control without breaking sterile technique. At 600 lbs with 32.2" of inner clearance, it fits comfortably in tighter ORs while still providing the full-field digital imaging that image intensifier systems cannot match.
Specifications
X-ray Generation
- Tube
- Stationary anode
- Nominal Power
- 2.3kW @ 100 kVp
Imaging

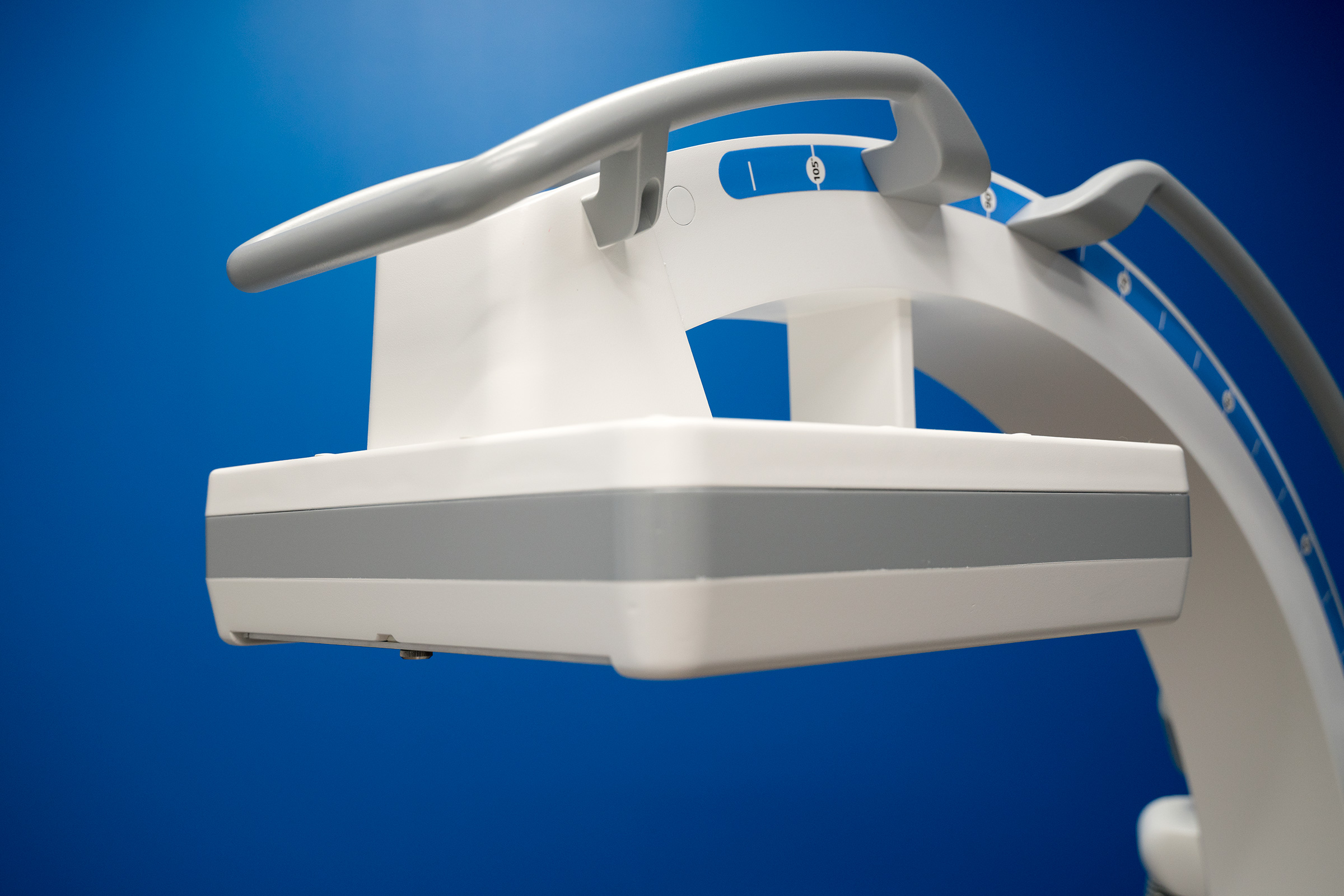

- Flat Detector
- 30x30cm or 20x20cm
- Resolution
- 1536x1536 or 1024x1024
User Interface

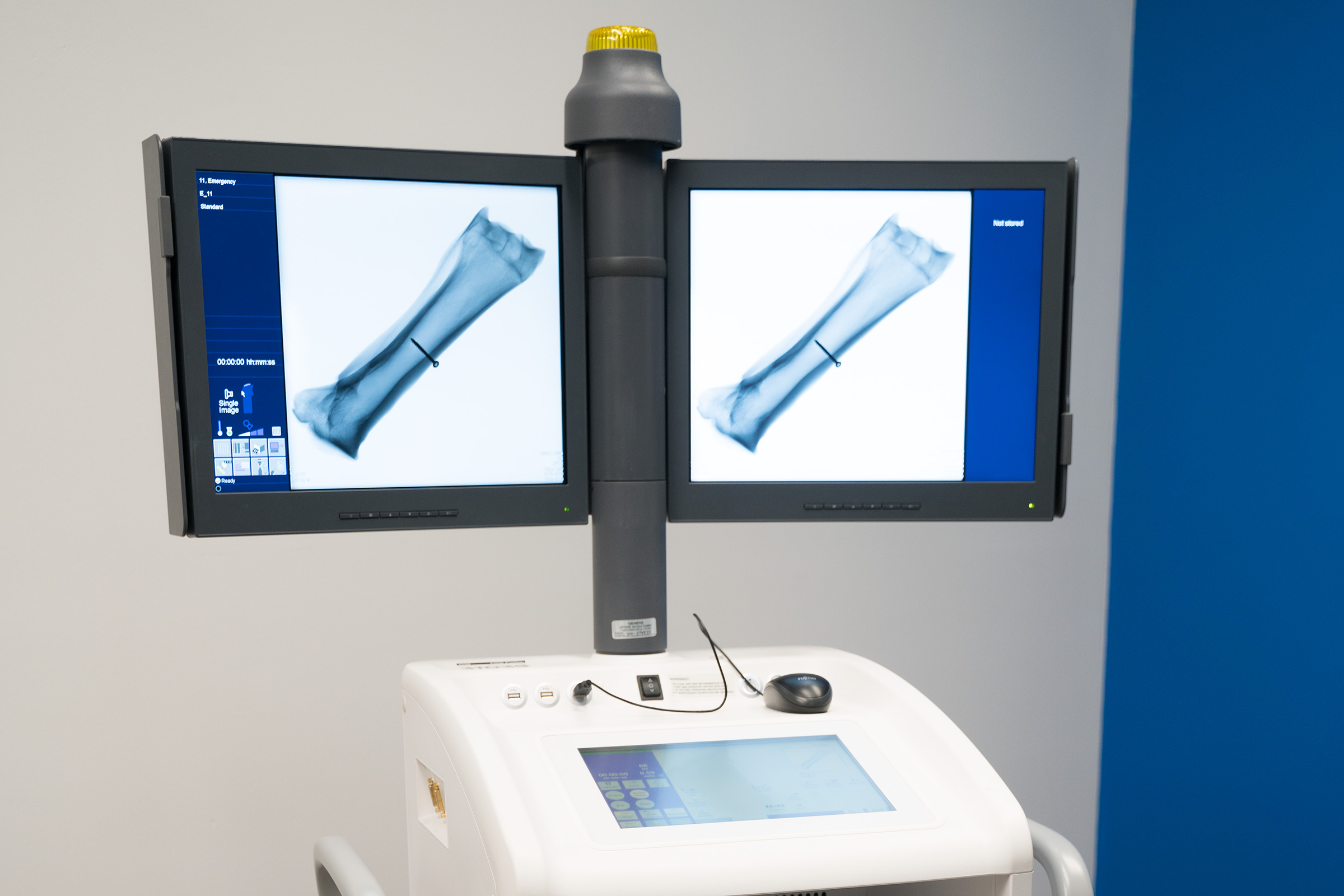

- Monitors
- Two 19" LCD Flat Panel

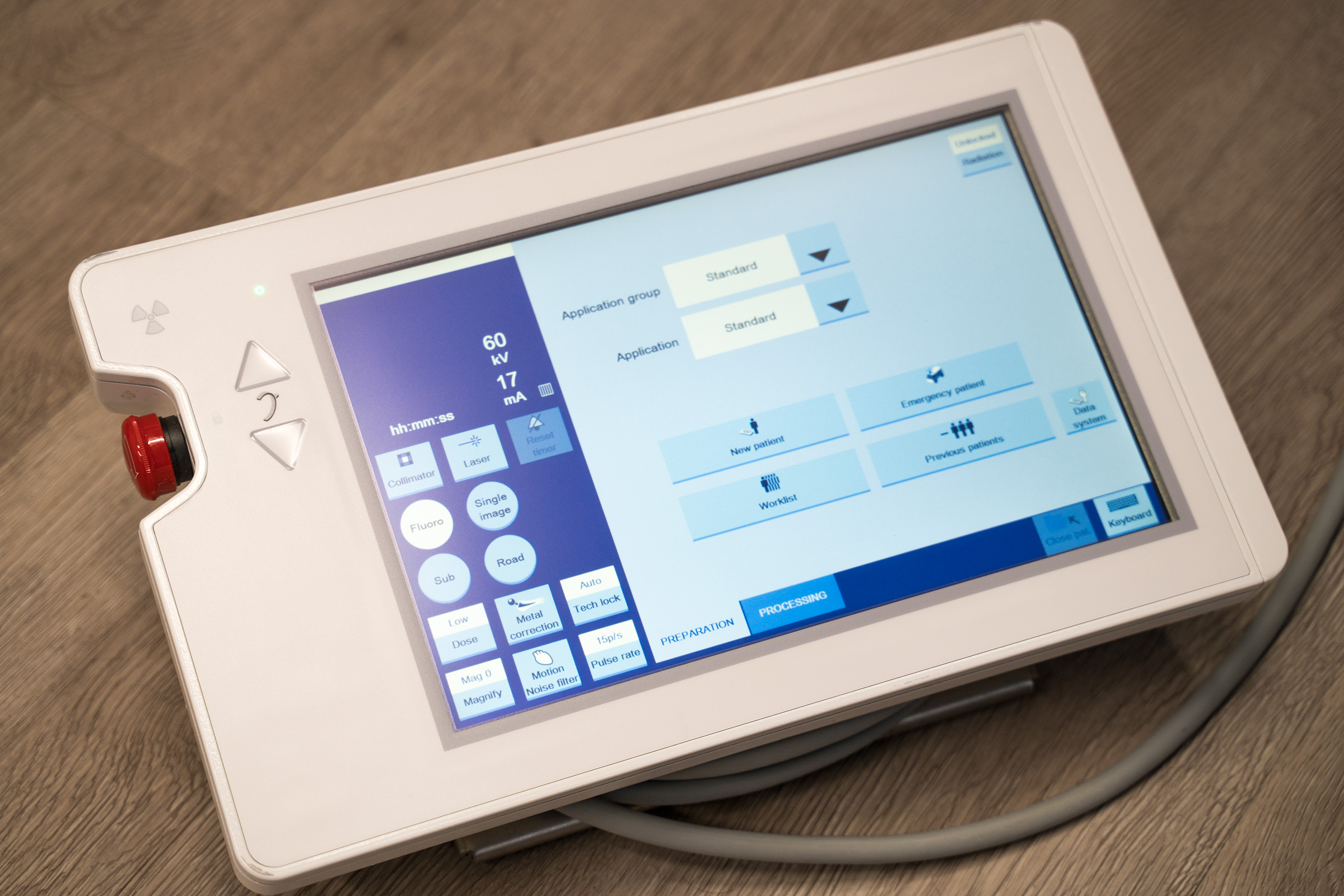

- Workstation Touchscreen
- LCD Touchscreen Controller
- C-Arm Touchscreen
- LCD Touchscreen Controller
Geometry
- Free space within C-arm
- 32.2"
- Orbital Rotation
- +110° to -40°
- C-arm depth
- 28.7"
- Angulation
- ± 225°
Connectivity
- Video Output
- DVI (Optional)
- Networking (DICOM Optional)
- Wired
- Other
- USB (Image Export)
Dimensions
- C-Arm
- 63.8" H x 31.6" W x 77" L
- C-Arm Weight
- 600 lbs
- Workstation
- 71.7" H x 29.1" W x 71.7" L
- Workstation Weight
- 506 lbs
